Fuel Pump Relay Harness

Finishing up your project car and looking for a clean and simple solution to power your fuel pump?

Are you wanting to add a surge tank to your fuel system?

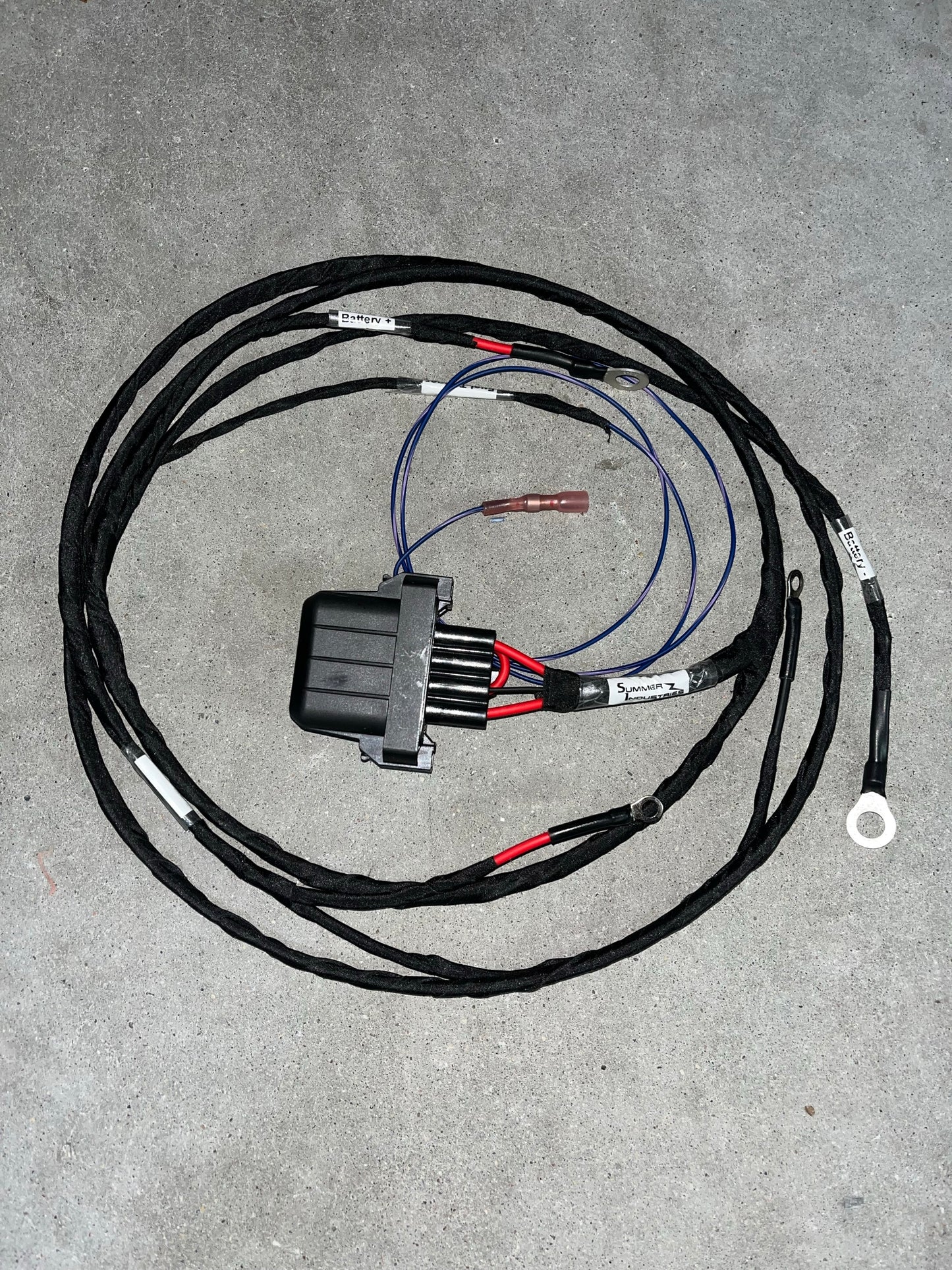

This Fuel Pump Relay Harness allows you to power a single fuel pump by using the ecu fuel pump trigger wire and trunk mounted battery positive and negative terminals.

By using this harness you will only need to route one wire from your ecu to the rear of the car.

This harness also allows you to add an extra fuel pump to your car by connecting to the fuel pump trigger wire from your ecu or connecting to your existing fuel pump power wire.

Designed to work with a trunk mounted battery and rearward mounted fuel tank.

If you are running two fuel pumps, check out our Dual Fuel Pump Harness

Features:

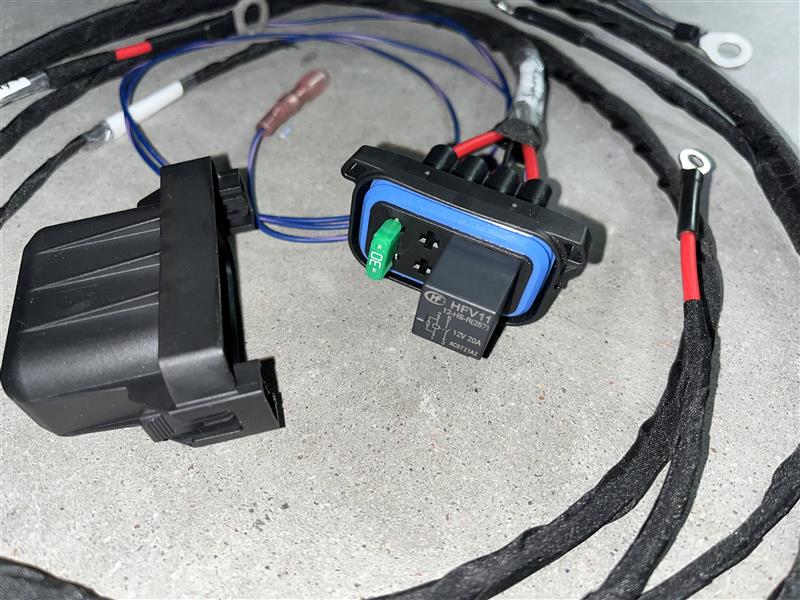

• Compact and water tight relay/fuse holder
• Micro relay and fuse rated for 30 AMP load (tested with a 525lph Walbro fuel pump)
• Ring terminals to attach to the battery positive and negative terminals
• shrink tube style butt splice for connecting to the trigger wire.
• 12V style or Ground style options available. (normal fuel pump trigger is 12V style, ECU Output trigger is Ground Style)
• Ring terminals for a fuel tank top hat terminal (fuel pump power wires can also be butt spliced to the existing fuel pump wires if using the factory fuel pump)
