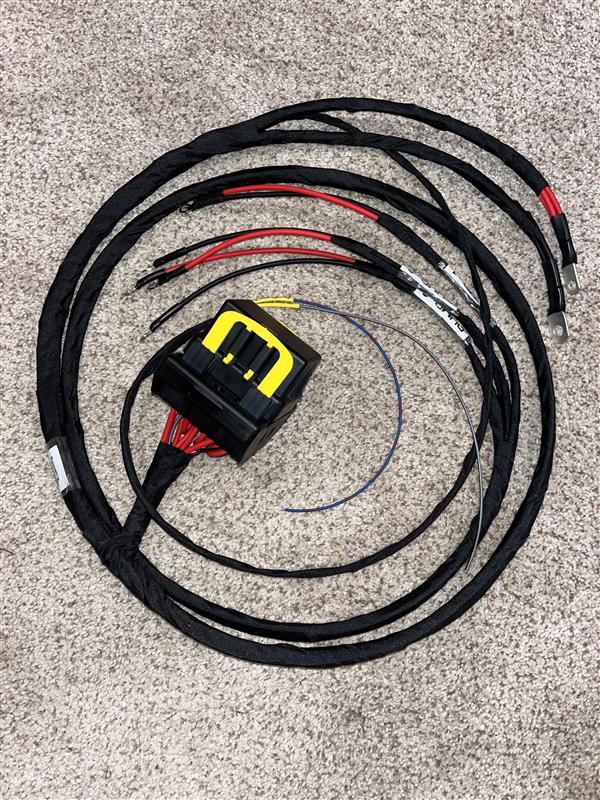

Triple Fuel Pump Relay Harness

Finishing up your project car and looking for a clean and simple solution to power your fuel pumps?

Are you wanting to add a surge tank to your fuel system?

This Triple Fuel Pump Relay Harness, Similar to our Fuel Pump Relay Harness, allows you to power three fuel pumps instead of one or two pumps by using the ecu fuel pump trigger wire and/or an ECU output and trunk mounted battery positive and negative terminals.

By using this harness you will only need to route 1-2 wires from your ecu to the rear of the car.

This harness also allows you to add 3 extra fuel pumps to your car by connecting to the fuel pump trigger wire from your ecu or connecting to your existing fuel pump power wire.

Designed to work with a trunk mounted battery and rearward mounted fuel tank.

Features:

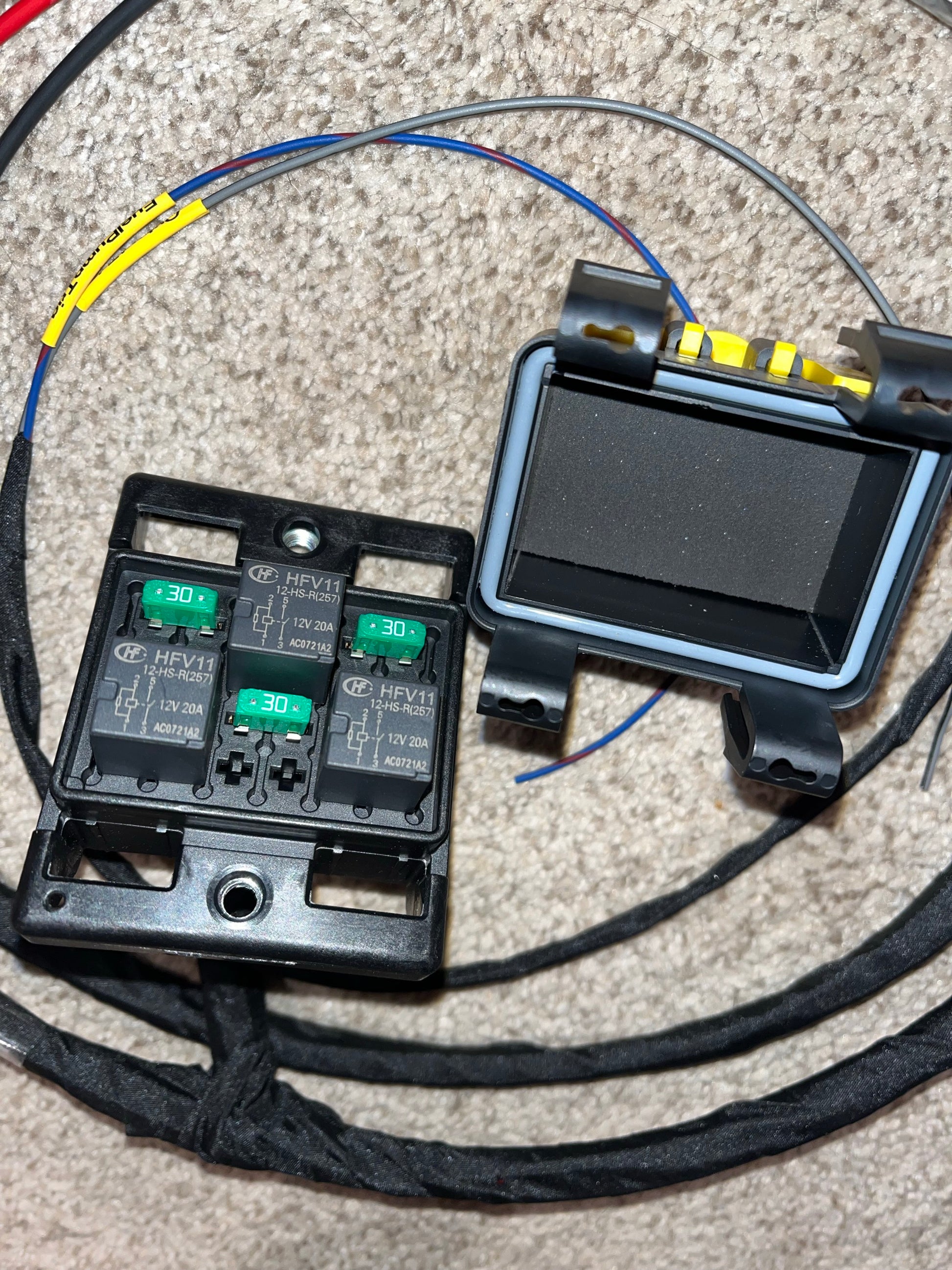

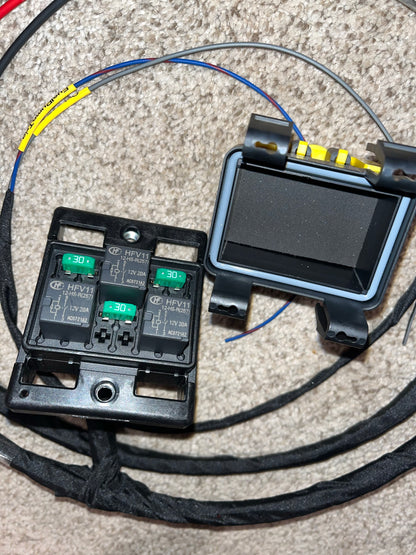

• Compact and water tight relay/fuse holder
• Micro relays and fuses rated for 30 AMP load (tested with a 525lph Walbro fuel pump)
• Ring terminals to attach to the battery positive and negative terminals
• shrink tube style butt splice for connecting to the trigger wire.
• 3 - 12V style fuel pump triggers or 1 - 12v style and 2 - Ground style options available. great for activating a second pump under boost. (normal fuel pump trigger is 12V style, ECU Output trigger is Ground Style)

• Ring terminals for a fuel tank top hat terminal (fuel pump power wires can also be butt spliced to the existing fuel pump wires if using the factory fuel pump)
• Independant fuses to power the fuel pumps sepratly, if one pump fails and blows the fuse, the other pumps will continue to run.
